GRP SECTIONAL WATER TANKS
Modular FRP/GRP water storage systems engineered for durability, hygiene and reliable performance across potable water, fire protection, commercial and industrial applications.
WHY SUNNIK GRP SECTIONAL WATER TANKS?
SUNNIK GRP sectional water tanks provide a modular and durable water storage solution designed for a wide range of applications. The sectional panel construction allows tanks to be configured according to project capacity and site requirements, while providing corrosion resistance, hygienic water storage and reliable structural performance.
Corrosion Resistant
GRP panels provide excellent resistance to corrosion, supporting long-term performance in demanding water storage environments.
Hygienic Water Storage
Designed for hygienic water storage, with GRP materials suitable for potable water applications and supported by recognized water-quality certifications.
Modular Design
Sectional panel construction allows tank dimensions and capacities to be configured according to project requirements and available installation space.
High Structural Strength
Engineered panel and reinforcement systems provide reliable structural performance under water pressure and project-specific loading conditions.
GRP WATER TANK APPLICATIONS
SUNNIK GRP sectional water tanks are suitable for a wide range of water storage applications across commercial, industrial and infrastructure projects.
Potable Water
Fire Protection
HVAC Systems
Industrial & Process Water
Rainwater Harvesting
Seawater Storage
Wastewater Storage
TANK CONFIGURATION & REINFORCEMENT
SUNNIK GRP sectional tanks can be configured with internal or external reinforcement systems to suit project requirements, tank dimensions and site conditions. Modular panel construction also allows tanks to be installed on suitable concrete foundations or steel skid-base systems.

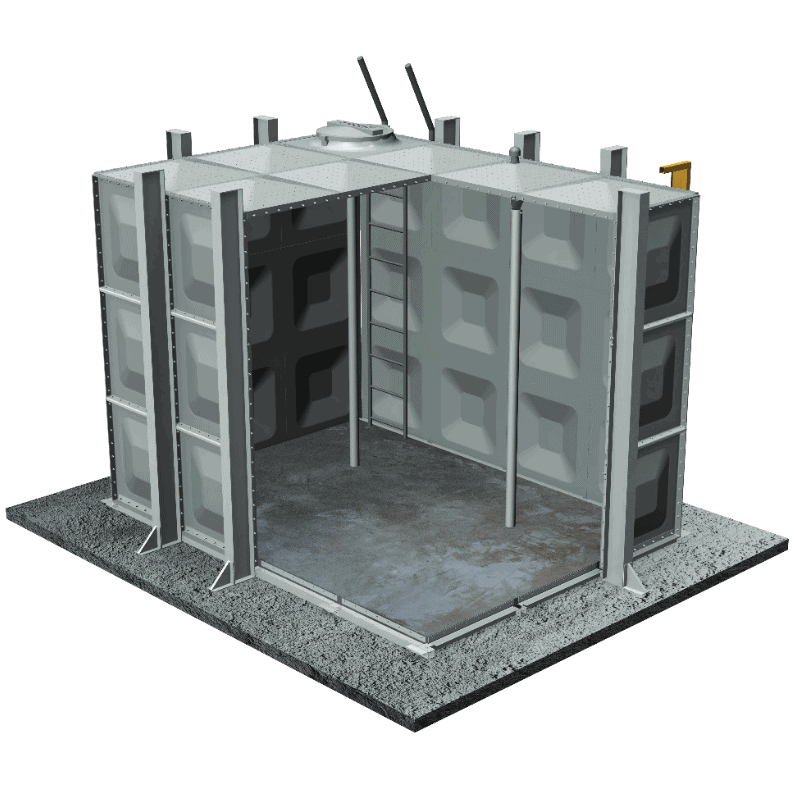

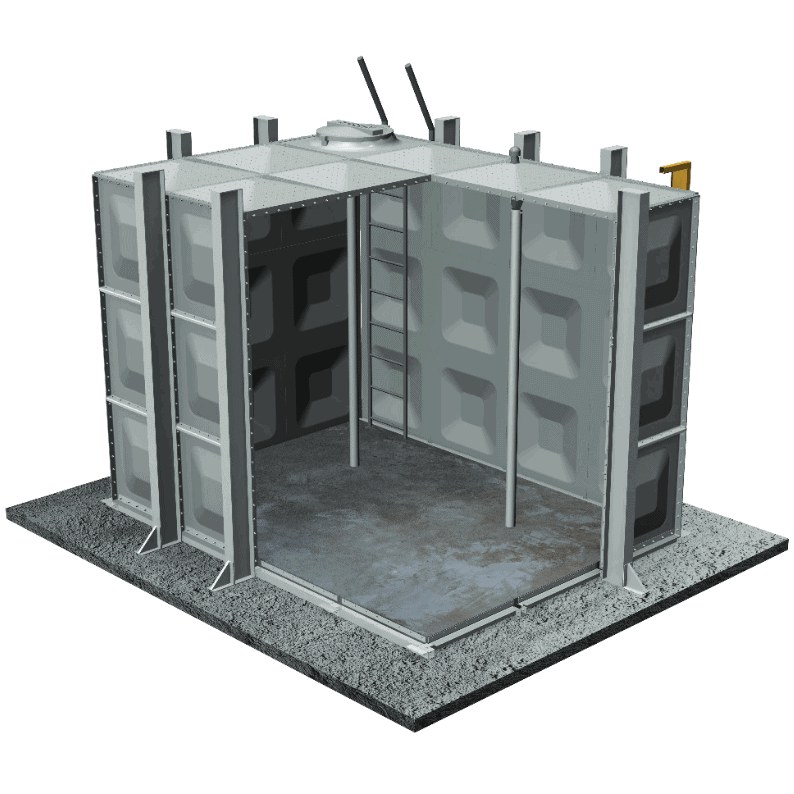

External Reinforcement

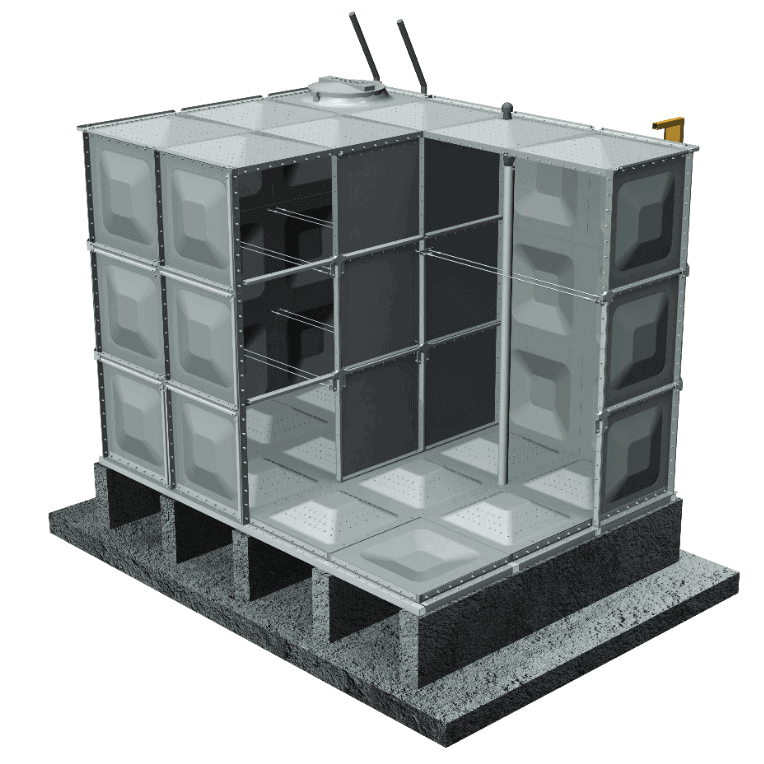

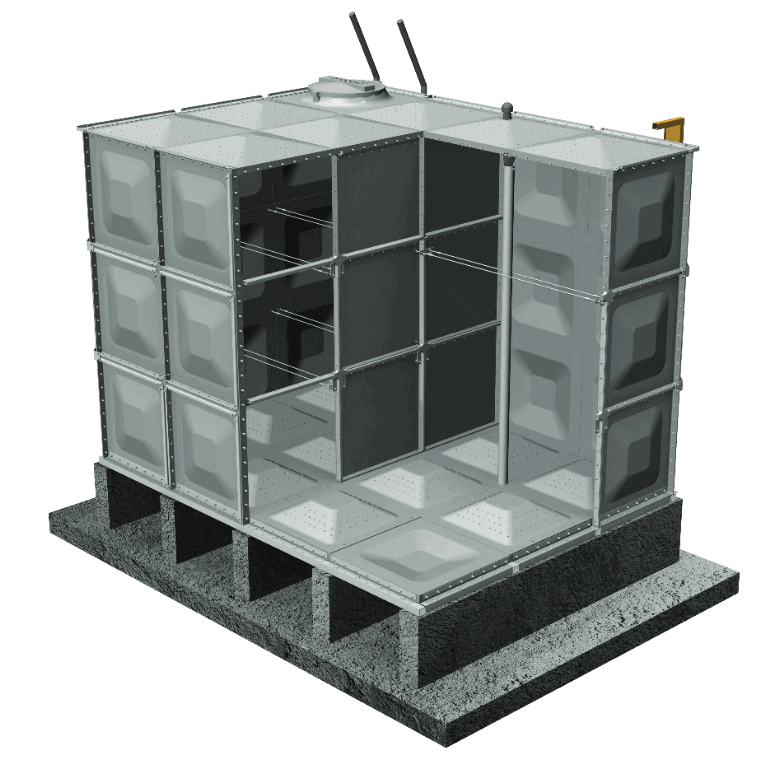

Internal Reinforcement
TECHNICAL SPECIFICATIONS
SUNNIK GRP sectional water tanks are engineered as modular water storage systems, with tank configuration, reinforcement and accessories selected according to tank dimensions, capacity, application and project requirements.
Tank Construction
- Modular GRP/FRP sectional panel construction
- SMC hot-pressed moulded panels
- Internal or external reinforcement configurations
- Steel skid-base system available
- Tank partitions can be incorporated where required
Perfomance & Options
- Engineered with a 6× factor of safety
- Optional 25 mm or 50 mm polyurethane insulation
- Suitable for indoor and outdoor installations
- Modular configuration for different tank dimensions and capacities
STANDARDS & COMPLIANCE
SUNNIK GRP sectional water tanks are manufactured and tested in accordance with recognized standards for sectional water storage systems and materials intended for water applications.
NSF/ANSI 61
Potable Water Compliance
WRAS BS 6920
Water Qyality Compliance
BS EN 13280:2001
Cold Water Storage Tank
SS 245:2014
Potable Water Compliance
AWWA D121
GRP Sectional Water Tank Standards

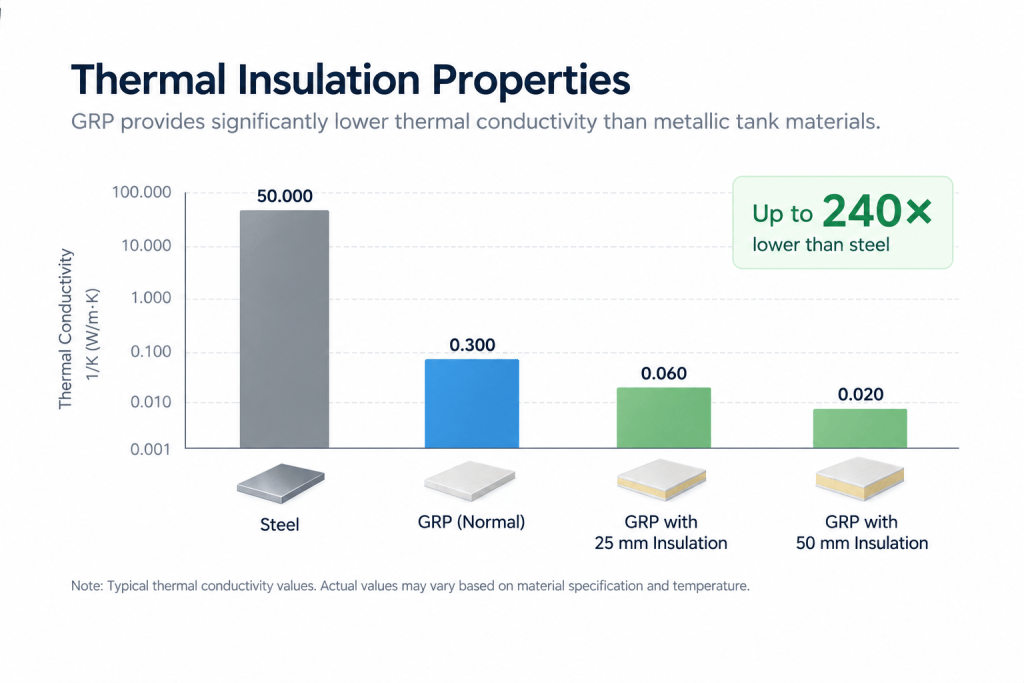

THERMAL PERFORMANCE & INSULATION
GRP provides significantly lower thermal conductivity than metallic tank materials, helping reduce heat transfer through the tank panels. Where additional thermal protection is required, SUNNIK GRP sectional tanks can be supplied with polyurethane insulation.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Low Thermal Conductivity
GRP has significantly lower thermal conductivity than steel, helping reduce heat transfer through the tank walls and limiting temperature changes in stored water.
Up to 240× Lower Thermal Conductivity
Optional Thermal Insulation
For applications requiring additional thermal protection, SUNNIK GRP panels can be supplied with polyurethane foam insulation to further reduce heat transfer and help maintain the temperature of stored water.
25 mm or 50 mm Polyurethane Insulation
DURABILITY & WEATHERING PERFORMANCE

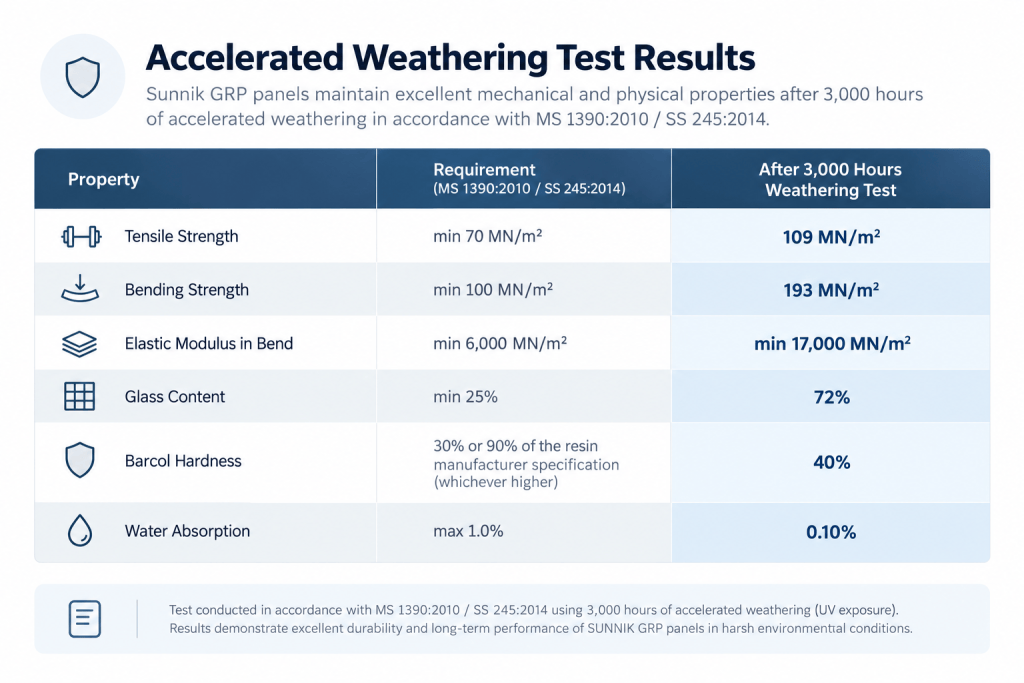

SUNNIK GRP panels have undergone accelerated weathering testing for 3,000 hours to evaluate long-term material performance. Test results demonstrate that key mechanical and physical properties remain above the requirements specified by MS 1390:2010 and SS 245:2014.

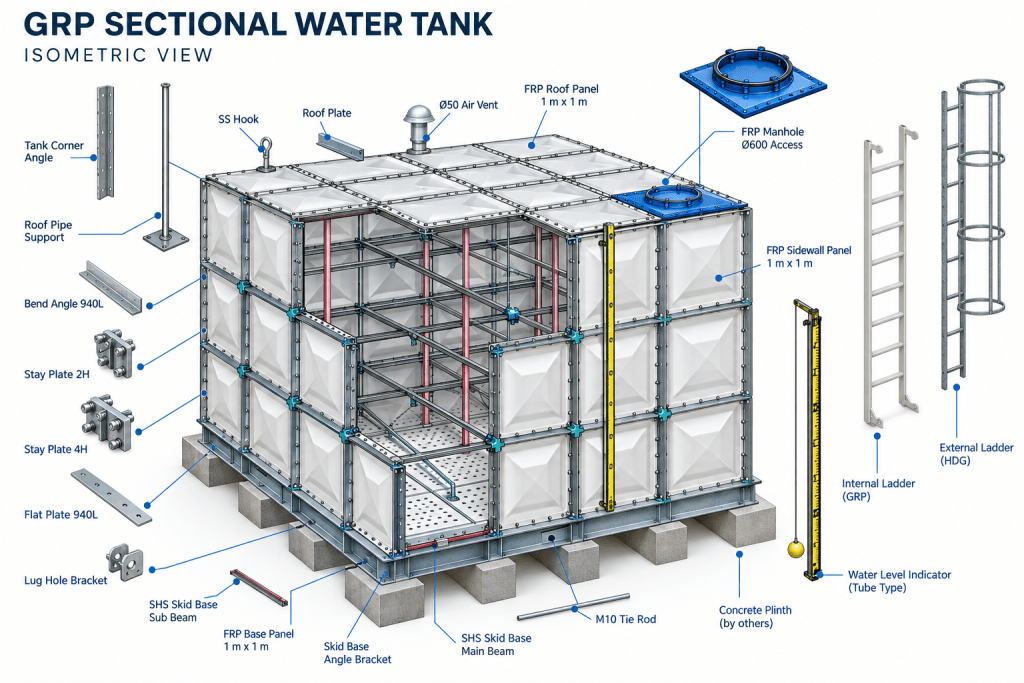

TANK COMPONENTS & ACCESSORIES
SUNNIK GRP sectional water tanks are supplied as complete modular systems with components and accessories selected according to tank configuration, application and project requirements.
Tank Access
- Roof manhole
- Internal ladder
- External ladder
- Roof access provisions
- Air vents
Pipe Connections
- Inlet connection
- Outlet / suction connection
- Overflow connection
- Drain connection
- Flanged pipe connections
- Anti-vortex plate where required
Monitoring & Accessories
- Water level indicator
- Level sensor connections
- Float valve provision
- Internal partition where required
- Tank identification / access accessories
INSTALLATION & PROJECT SUPPORT
As SUNNIK’s Exclusive Agent in Egypt, Mechatech provides local technical and project support throughout the complete tank lifecycle, from design coordination and technical submittals through installation, testing, commissioning and after-sales support.
Design & Engineering
Supply
Installation
After-Sales Support

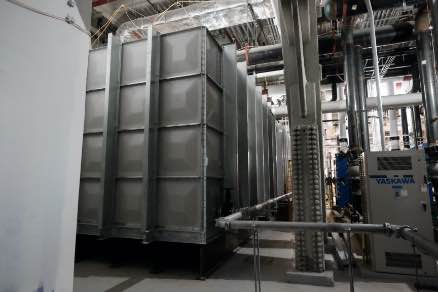

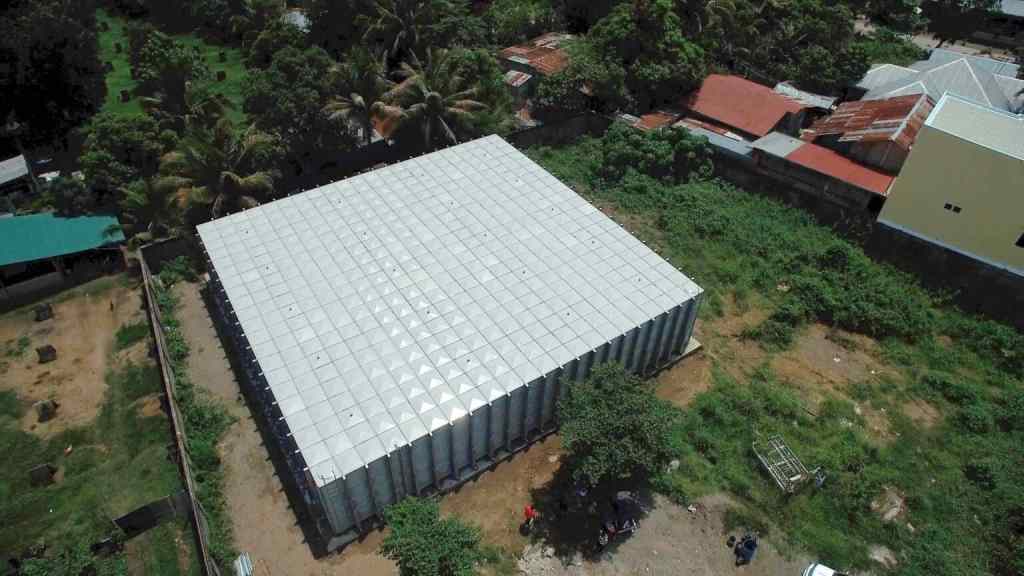

GRP TANK PROJECTS
SUNNIK GRP sectional water tanks have been supplied for water storage applications across commercial, industrial, infrastructure and fire protection projects worldwide.
REQUEST TECHNICAL DOCUMENTS & QUOTATION
Share your project requirements and contact details, and our team will provide the relevant SUNNIK technical documentation together with a project-specific quotation
